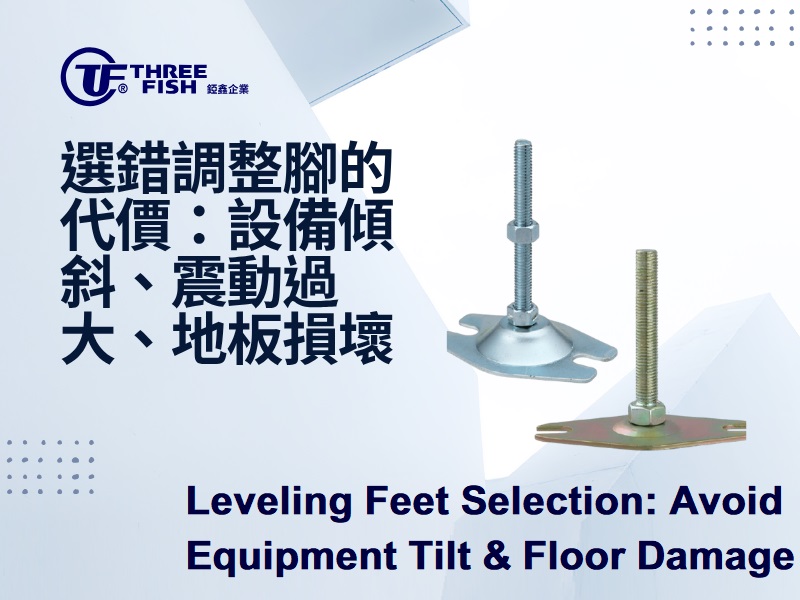

Leveling Feet Selection: Avoid Equipment Tilt & Floor Damage

Introduction: Don’t Underestimate Leveling Feet—The High Cost of a Wrong Choice
In machinery, automated production lines, medical facilities, or data centers, adjustable leveling feet may be small in size, but they play a critical role in ensuring equipment stability. When purchasing equipment, many decision-makers focus on the main structure, control systems, or exterior design, while overlooking this seemingly insignificant “support component.” In reality, choosing the wrong leveling feet can lead to equipment tilt, excessive vibration, operational instability, and even floor damage—ultimately impacting production efficiency and safety.

This article draws on practical experience to analyze the five most common problems and hidden costs caused by selecting the wrong leveling feet. It also provides professional recommendations to help you choose the right solution the first time and avoid costly consequences.

---

1. Equipment Tilt Leads to Operational Instability and Potential Damage

Issue Analysis:
The most basic function of leveling feet is to keep equipment level. If an unsuitable model is selected or if installation is improper, resulting in equipment tilt, the following problems may occur:

• Reduced operational accuracy: For high-precision equipment such as CNC machines or laser cutters, even a 1° tilt can affect machining results.

• Stress concentration: Uneven equipment causes specific support points to bear excessive loads, leading to structural fatigue or localized cracking over time.

• Increased risk of slipping: On uneven or wet floors, tilted equipment is more prone to shifting or tipping during operation.

Typical Scenario Simulation:
For example, in optical inspection or automated measurement systems, neglecting the height compensation range of leveling feet can result in slight tilting after installation. Over time, this not only reduces measurement accuracy but also accelerates wear on one side of the foot assembly or guide rail due to uneven loading—ultimately impacting production yield and equipment lifespan.

---

2. Excessive Equipment Vibration Affects Safety and Service Life

Issue Analysis:
If leveling feet lack vibration-damping capability or are made of overly rigid materials, they cannot effectively absorb micro or high-frequency vibrations generated during operation, leading to:

• Operator discomfort and safety risks: Prolonged vibrations can cause discomfort to operators and reduce work efficiency.

• Component loosening: Screws, guide rails, sensors, and other parts may shift or detach under continuous vibration.

• Reduced machine lifespan: Unmitigated vibration accelerates mechanical wear over time.

Recommendation:
For high-speed or precision equipment, choose leveling feet with shock-absorbing pads—such as those made from rubber, TPU, or with built-in spring damping structures—to ensure stable vibration absorption across different frequencies.

---

3. Insufficient Load Capacity Causes Foot Base Deformation or Failure

Issue Analysis:
Leveling feet must support the full weight of the equipment. If the load capacity is insufficient, the following may occur:

• Foot base deformation: Plastic bases, in particular, may deform or crack over time due to uneven stress.

• Threaded rod fracture or bending: If the steel rod is not strong enough, excessive force can cause permanent deformation or fatigue failure.

• Localized sagging of equipment: This eventually results in the same tilt and vibration issues mentioned earlier.

Solution:
When selecting leveling feet, calculate based on the total equipment weight and number of support points, and apply a 1.3–1.5× safety factor. For example, a 400 kg machine with 4 leveling feet requires each foot to have at least a 130–150 kg load capacity.

---

4. Inappropriate Base Material Damages Flooring

Issue Analysis:
The base of the leveling foot is in direct contact with the floor. If the material is unsuitable or lacks sufficient friction, it may cause:

• Scratching or wear on hard surfaces (e.g., tile, epoxy flooring)

• Indentations or scuffing on soft surfaces (e.g., wood, PVC)

• Corrosion in humid or chemically aggressive environments

Selection Tip:

Different flooring materials require different base pad materials. Below is a simple reference table:

Flooring Material	Recommended Base Pad Material	Reason
Tile / Epoxy	Rubber or TPU pad	Prevents slipping and surface scratching
Wood / PVC	Soft rubber pad	Distributes pressure to avoid dents
Concrete	Hard rubber or steel base with anti-slip coating	Durable and stable
Chemical / Wet Area	Corrosion-resistant stainless steel or chemical-resistant rubber	Prevents degradation and maintains grip

※ If cleaning requirements are involved, consider choosing a design with a removable base pad for easy maintenance

---

5. Insufficient Adjustment Range or Poor Adjustment Mechanism, Leading to Installation Challenges

Problem Analysis:
The core value of adjustable leveling feet lies in their ability to fine-tune height to compensate for uneven floors. If the adjustment range is too short, or the adjustment mechanism is poorly designed, the following issues may occur:

• Difficulty positioning equipment on-site, requiring shims or elevation adjustments, which increases labor time and potential inaccuracies

• Inability to precisely control the height of each support point after installation due to poor adjustment smoothness

• Inconvenience for equipment that requires frequent height adjustments

Solution:
Before purchasing, confirm the adjustable height range and thread length (available in specifications such as M10, M12, M16, M20, etc.). Prioritize designs with anti-slip features and anti-loosening mechanisms—such as lock nuts or built-in cushioning springs—to enhance ease of operation and stability.

---

Conclusion: Adjustable Leveling Feet—A Small Part with a Big Impact on Equipment Stability

Many companies or installation personnel treat adjustable leveling feet as standard accessories when planning new equipment, without thorough evaluation or selection. In reality, the material, structure, load capacity, mounting method, and vibration absorption performance of leveling feet are all closely tied to the safety and efficiency of equipment operation. If chosen carelessly, the indirect costs caused by instability will far exceed the price of the leveling feet themselves.

---

THREE FISH CASTER – Offering a Wide Range of Standard and Customized Leveling Foot Solutions

THREE FISH CASTER, as a professional manufacturer of industrial casters and adjustable leveling feet, provides products in various materials and designs for the following applications:

• Various automated machinery and processing equipment

• Medical carts and instruments

• Heavy-duty industrial equipment

• Servers and data center equipment

• Office furniture and display stands

Our product range includes:

• Fixed leveling feet: Basic load-bearing type for stable equipment

• Anti-vibration leveling feet: Built-in cushioning materials to effectively absorb vibrations

• Stainless steel leveling feet: Corrosion-resistant, suitable for food and medical industries

• Heavy-duty leveling feet: Reinforced structures for large equipment

• Custom sizes and thread specifications: M10–M30 options tailored to customer equipment requirements

We support small-batch customization, fast delivery, and provide technical selection assistance to help you solve problems at the source.

Contact THREE FISH CASTER today, and let us help you create the most suitable leveling foot solution for your equipment.
