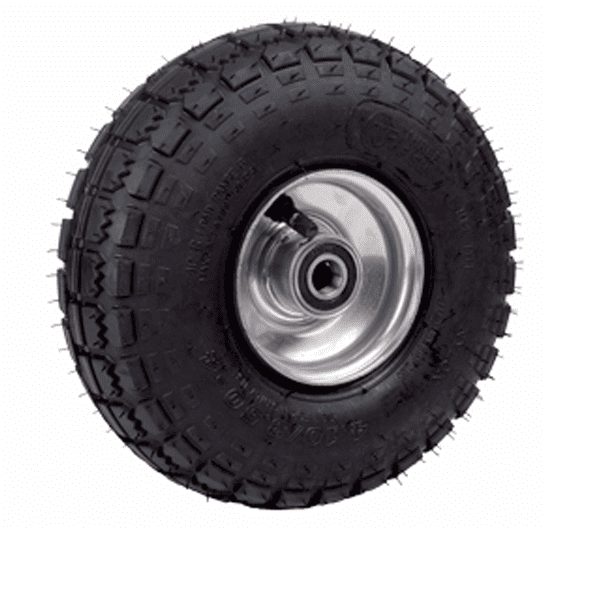

Tubeless high speed tire/inflatable elastic rubber wheel - 18Bb-200

Tag:#風輪 #打氣胎 #車胎

  • Tubeless, highly elastic, inflatable, higher load capacity, more stable operation
  • Applicable to: market carts, agricultural implements, religious activity carts

﹡Based on actual products, please contact our sales specialist to order

* If you cannot get the file through the download link, please write to us or leave a message through the LINE official account, and we will directly send the file to you. Thank you.

Bracket Type

18Bb200au

8" high-speed tire
Size
8”
Installation Method
Flate Plate Mounting
Features
Double ball bearings
Material
Rubber
Wheel Diameter
220mm
Wheel Width
63mm
Load Capacity
200kg
Applications
Retail. Logistics and warehousing. Data centers. Server cabinets. Medice. Food. Laboratories

FAQ

If you are unable to obtain the file through the download link, please contact us by Email or leave a message via our official LINE account. We will send the file to you directly by email. Thank you.

  • However, if dust or debris has accumulated inside the caster, the wheel may not spin at all when flicked, or it may only rotate for a few seconds. You may also hear a squeaking or creaking sound during movement. These are clear signs that maintenance is needed.

How to Select Appropriate Casters Based on Floor Conditions

Surface /
Wheel Type
PP PA PU ER TPR EVA CA
Concrete C B B B C B C
Asphalt B B B C C C A
Resin C C B B A B D
Tile C C A B A B D
Carpet A A A B B B D

A=Excellent    B=Good    C=Fair / Average    D=Poor

Check and maintain casters every 6 months. For harsh environments (dusty, humid, corrosive), maintenance every 3 months is recommended.

How should I maintain industrial casters?
Follow these steps to properly maintain casters:

  1. Clean Dust and Debris:Use a soft brush or compressed air to thoroughly remove dust, hair, and foreign objects from inside the casters and around the wheel axle.
  2. Lubrication:Apply lubricating oil or anti-rust lubricant (such as WD-40) to the wheel axle and rotation bearings to maintain smooth operation.
  3. Inspect and Adjust Fittings:Check screws, nuts, bearings, and other fastening components for looseness or damage, and tighten or replace them as necessary.
  4. Check for Wear:Examine the caster wheel surfaces for excessive wear or damage. Replace worn wheels promptly to prevent further damage.
  5. Routine Inspection and Documentation:Maintain regular inspection records and conduct inspections every 3 to 6 months to extend caster lifespan and ensure operational safety.
